UPS Battery System HV Series 409V 54Ah

Item No.: PUC-22k-409V54A-4C
Designed for large-capacity UPS applications, the Powershine High-Power UPS Battery Cabinet delivers exceptional power density, rapid discharge capability, and long-term reliability.
Description Review
Description
High-Power UPS Lithium Battery Cabinet
Reliable High-Voltage Energy Storage for Mission-Critical UPS Systems


Designed for large-capacity UPS applications, the Powershine High-Power UPS Battery Cabinet delivers exceptional power density, rapid discharge capability, and long-term reliability. Built with premium high-rate LiFePO₄ cells and an intelligent Battery Management System (BMS), it provides a safe and dependable backup power solution for data centers, industrial facilities, healthcare, financial institutions, telecommunications, and other mission-critical infrastructures.

Our battery cabinets are fully customizable to meet the specific requirements of UPS manufacturers, system integrators, EPC contractors, and industrial customers worldwide.

Product Overview

The 409.4V 54Ah High-Power UPS Battery Cabinet is specifically engineered for applications requiring high instantaneous power output and reliable emergency backup.

Featuring 4C continuous discharge capability, advanced battery protection, and intelligent monitoring, the system ensures maximum performance even under demanding operating conditions.

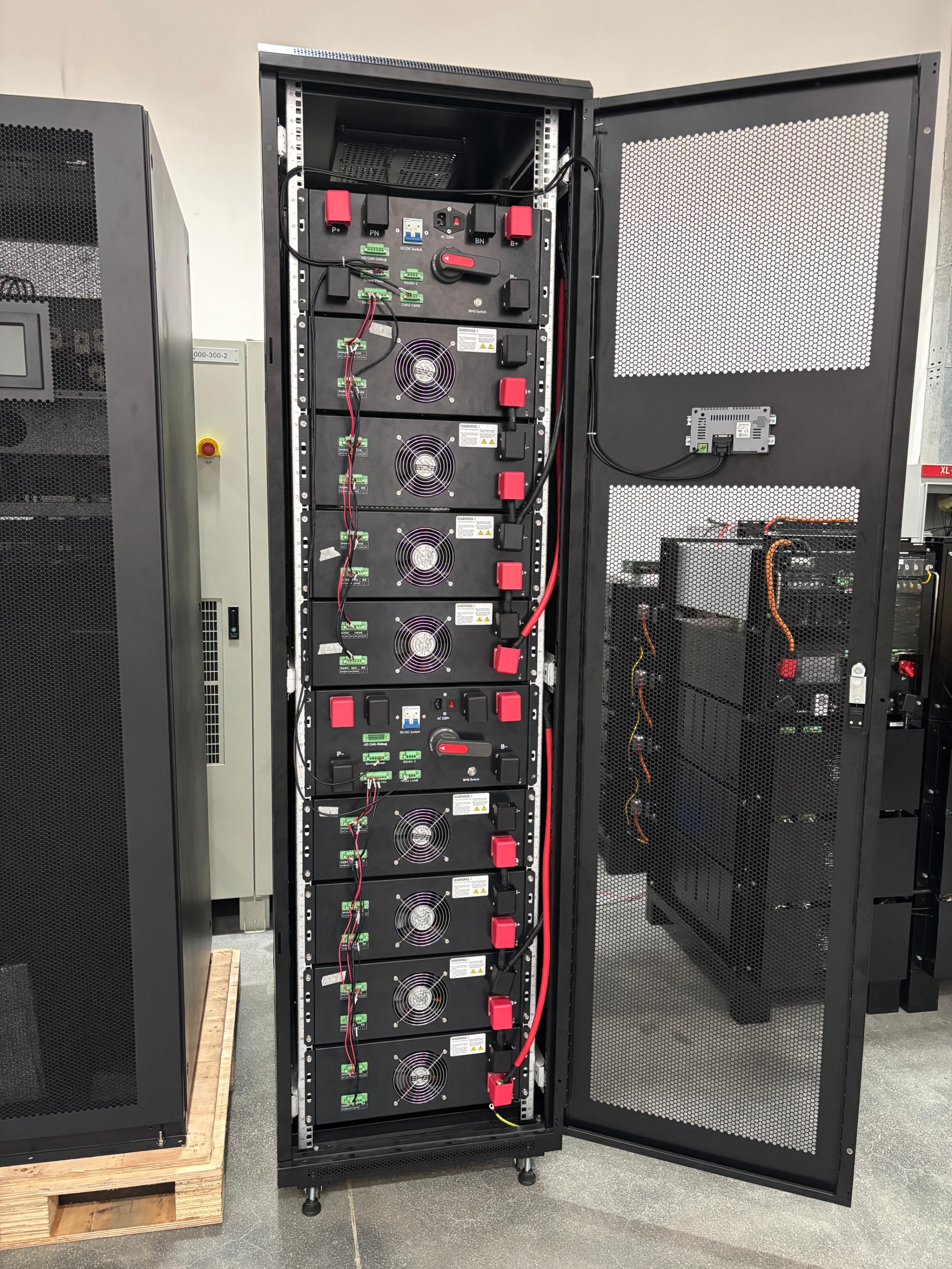

Designed with a modular rack structure, the battery cabinet simplifies installation, maintenance, and future system expansion while maintaining high operational safety and efficiency.

Key Features

High-Power Performance

Designed with high-rate LiFePO₄ cells capable of delivering up to 4C continuous discharge, providing instant high-current output for critical UPS loads.

Intelligent Battery Management System

Integrated smart BMS continuously monitors:

  • Cell Voltage
  • Pack Voltage
  • Current
  • Temperature
  • SOC
  • SOH
  • Fault Diagnosis
  • Protection Status

Ensuring maximum system safety and battery life.

Long Service Life

  • >6,000 Cycles @80% DOD
  • Low Total Cost of Ownership (TCO)
  • Maintenance-Free LiFePO₄ Technology

Superior Safety

Multiple protection mechanisms include:

  • Overcharge Protection
  • Over-discharge Protection
  • Over-current Protection
  • Short Circuit Protection
  • Temperature Protection
  • Cell Balancing
  • Fault Alarm & Isolation

Flexible Customization

Available for customized:

  • Battery Voltage
  • Capacity
  • Cabinet Size
  • Communication Protocol
  • Connector Type
  • Parallel Expansion
  • Protection Configuration
  • Cooling Method

Technical Specifications

Item Specification
Battery Chemistry LiFePO₄
Nominal Voltage 409.4V
Nominal Capacity 54Ah
Energy Approximately 22kWh
Cell Type High-Rate LiFePO₄
Discharge Rate 4C Continuous
Charge Rate 1C Standard
Cycle Life ≥6000 Cycles @80% DOD
Communication CAN / RS485 / Modbus
Protection Level IP20 (Optional IP42 / IP54)
Operating Temperature Charge: 0~45°C / Discharge: -20~55°C
Monitoring Smart BMS
Installation Indoor Rack Cabinet
Customization Supported

Applications
The High-Power UPS Battery Cabinet is ideal for:
Data Centers
Cloud Computing Centers
Financial Institutions
Hospitals
Airports
Rail Transit
Industrial Manufacturing
Telecom Base Stations
Government Facilities
Power Utilities

Why Choose Powershine?
Customized UPS Battery Solutions
With years of experience in lithium battery systems and energy storage technologies, Powershine provides complete OEM & ODM solutions for global UPS manufacturers and system integrators.

We support:

Customized High Voltage Battery Systems
High Discharge Rate Battery Cabinets (2C / 4C / 6C)
Parallel Battery Solutions
Intelligent BMS Development
Communication Protocol Customization
Project Engineering Support
Global Technical Service

From product design and manufacturing to project delivery, Powershine helps customers build safer, smarter, and more reliable backup power systems.

Typical Industries We Serve
UPS Manufacturers
Data Center Operators
EPC Contractors
System Integrators
Renewable Energy Companies
Telecom Operators
Government Projects
Industrial Automation
Medical Facilities

Reliable Partner for High-Power UPS Lithium Battery Solutions!
